DPM-C530 / C530E

Features & Benefits

High-precision Power Quality and Electricity Parameter Measurement

• High-precision Class 0.5S bidirectional energy and electricity parameter measurement, complies with IEC 62053 and CNS 14607 criteria

• Supports power quality measurement of total / individual harmonic distortion and current / voltage unbalance

Large LCD Screen

• Dot matrix LCD display with 198 x 160 dots, supports clear reading and display of English (capital and lowercase letters), Traditional Chinese, Simplified Chinese, Japanese, and other languages

Parameter Grouping Function

• The parameter group contains all needed energy data for master controllers (including PLCs, SCADA and EMS) to acquire and reduce reading time, enhancing real-time data accessibility

• Combines several discontinuous register addresses to one continuous address, reducing commands to achieve high-efficiency data acquisition of the master controllers (SCADA and PLC)

• All energy data can be combined as a parameter group for master controllers to acquire and reduce reading time, enhancing real-time data accessibility

Energy Measurement and Alarm History

• The management software DPMSoft monitors real-time electricity data, and can easily export all history logs

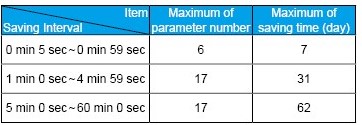

• Offers energy history logs that can be saved for up to 2 months, and with up to 17 electricity parameters based on various time intervals (example: 17 electricity parameters, 5 minute time intervals for 2 months). 29 built-in alarm events with up to 500 alert history logs

Auto Meter Function

• Automatically settles monthly energy consumption (with built-in real-time calendar)

• Adopts a built-in date selected register that records active / reactive energy within a given month interval. Matched with remote communication control or energy management systems, the DPM-C530A can analyze monthly active / reactive energy, multi-rate meter calculation, and conditions of energy usage

Multi-Tariff

• Automatic measurement & calculation of power consumption during a specific time period

• Multiple interval groups setting to measure power consumption at different periods of time

Ethernet Communication

• Dual Ethernet protocols support Modbus TCP

• Easy serial connection without gateway, no need to occupy communication ports

• Basic settings and data viewing on web page

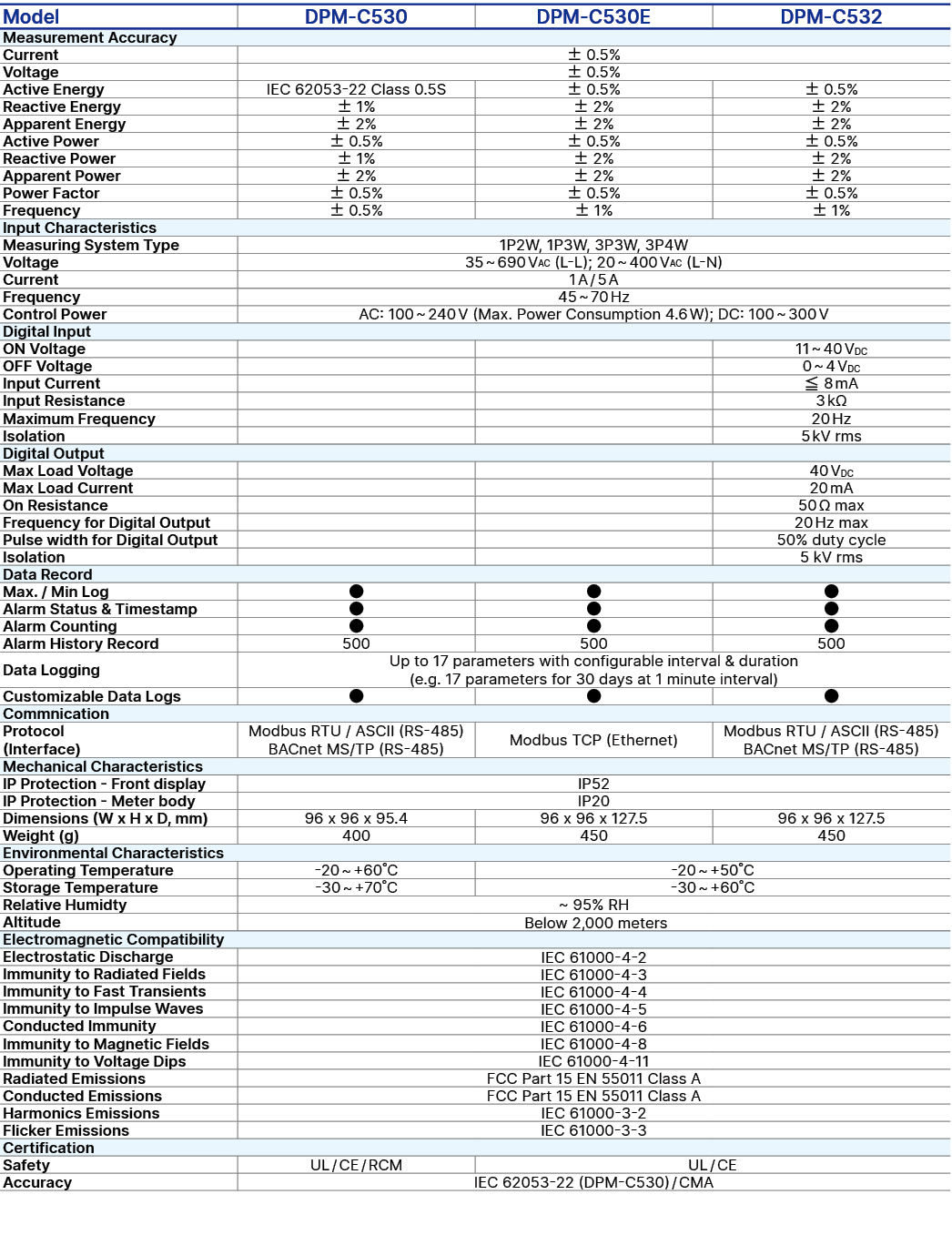

Specifications
