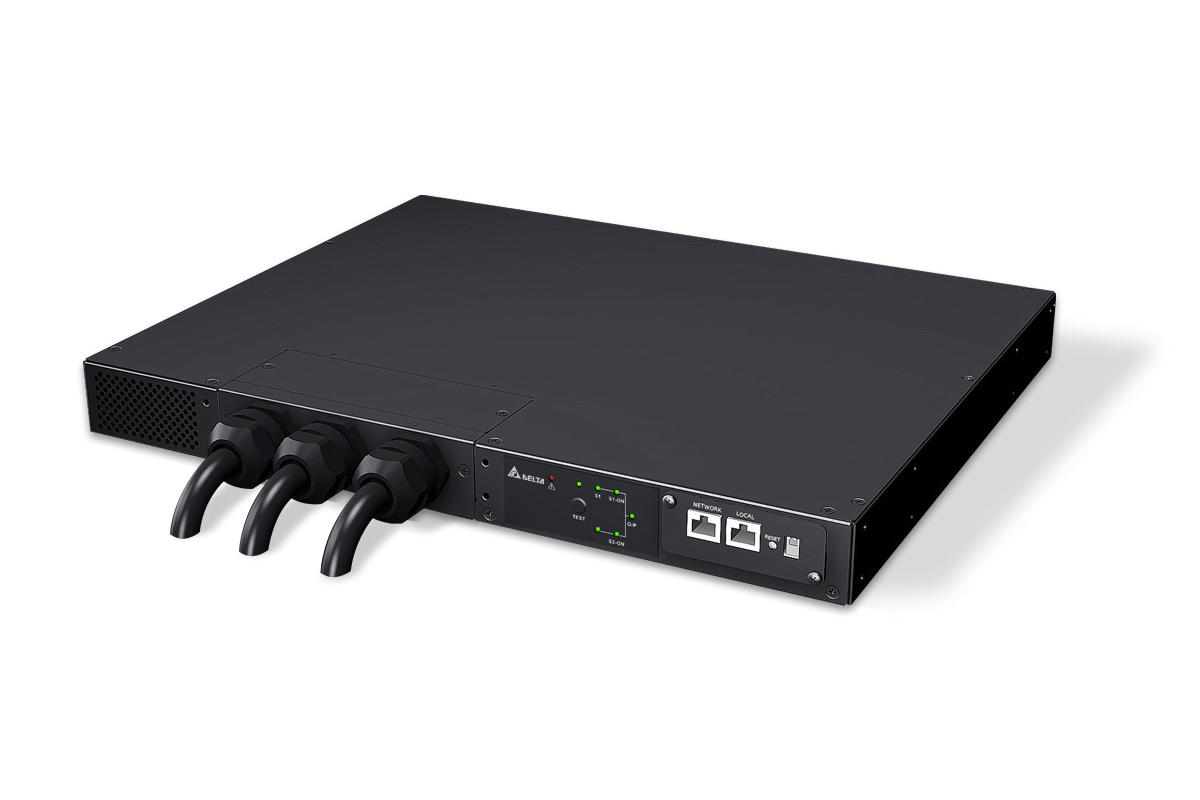

Rack-Mount Static Transfer Switch

Highly reliable power redundancy for mission critical IT equipment

The Rack-Mount Static Transfer Switch (rSTS) safeguards the uninterrupted operation of mission critical IT equipment. Powered by two independent power sources, the rSTS rapidly switches from one source to the other automatically when the power supply used to power its connected load fails. For datacenter applications the rSTS allows power drop risk to be shared or distributed to each rack to prevent power loss for the whole system. The rSTS offers an efficient and reliable switch that supports the high redundancy requirements of mission critical power systems.

▲ Supports power redundant configurations for high reliability

Downloads Request a Quote Subscribe Newsletter

Product Introduction

Tools & Services

Related Information

Product Introduction
Tools & Services
Related Information
Contact Us

Product Introduction

Features & Benefits

Availability

Adopts SCR with a relay in parallel as a switching device to increase reliability without sacrificing efficiency

Supports power redundant configurations for high reliability

Monitors the health of the power source and performs the transfer automatically

Convenience

Rack-mounted type with 1U size for easy installation and relocation

Built-in SNMP for remote management

LED indicators show power flow

Self-test function

Safety

Break before make prevents short circuits between two sources

Specifications

Model
STS16002SR / STS30002SR
Rated Current
STS16002SR : 16A
STS30002SR : 30A *
Regulatory
STS16002SR : CE / UL
STS30002SR : CE
Nominal Voltage : 200/208/220/230/240 Vac
Display : LED
Connection
Input

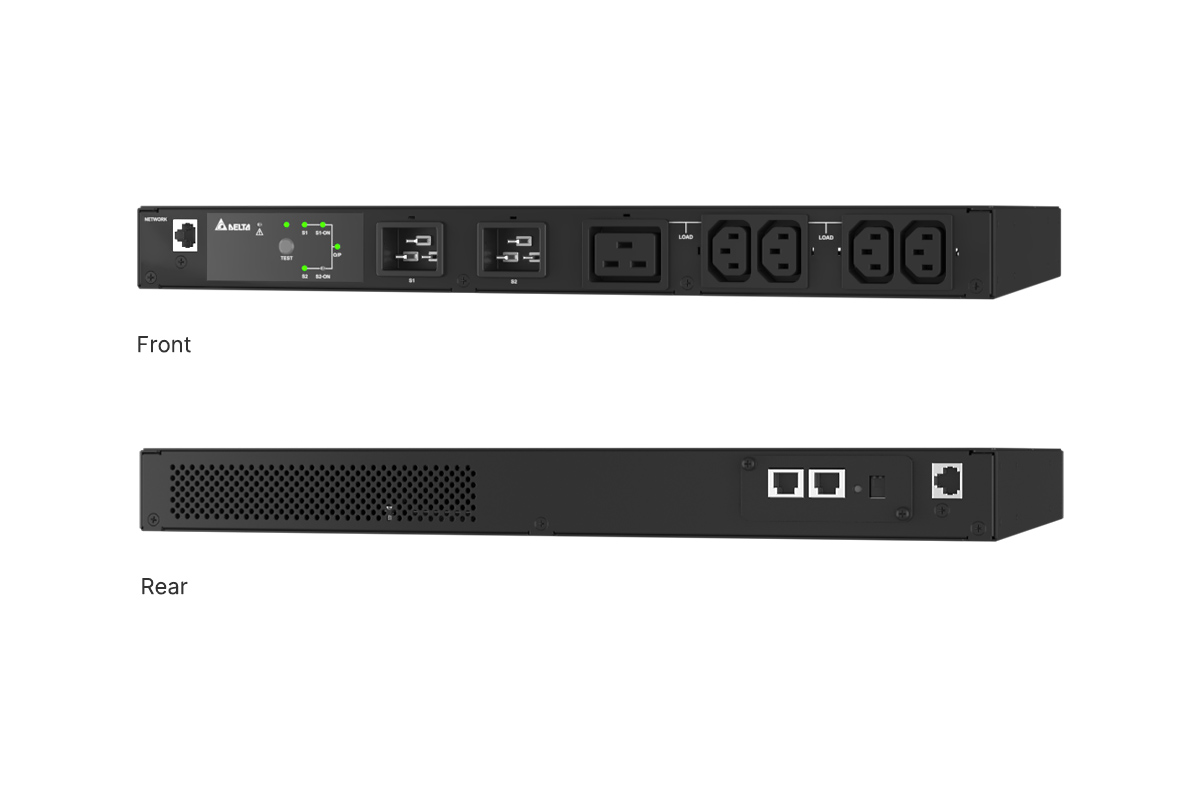

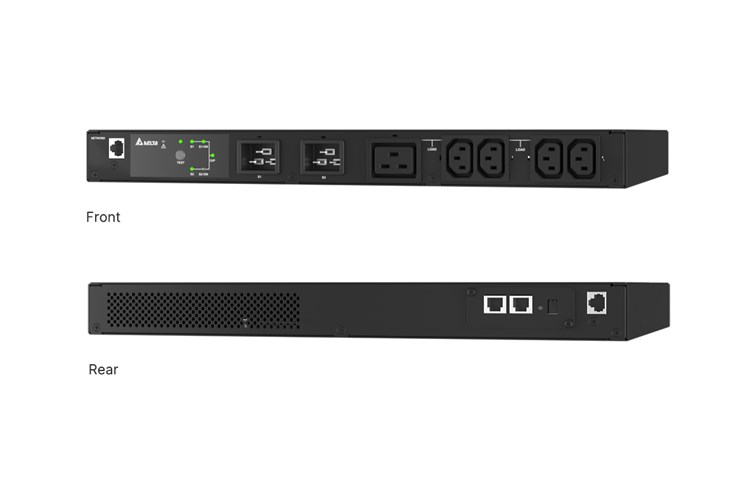

STS16002SR : C20 x 2 pcs

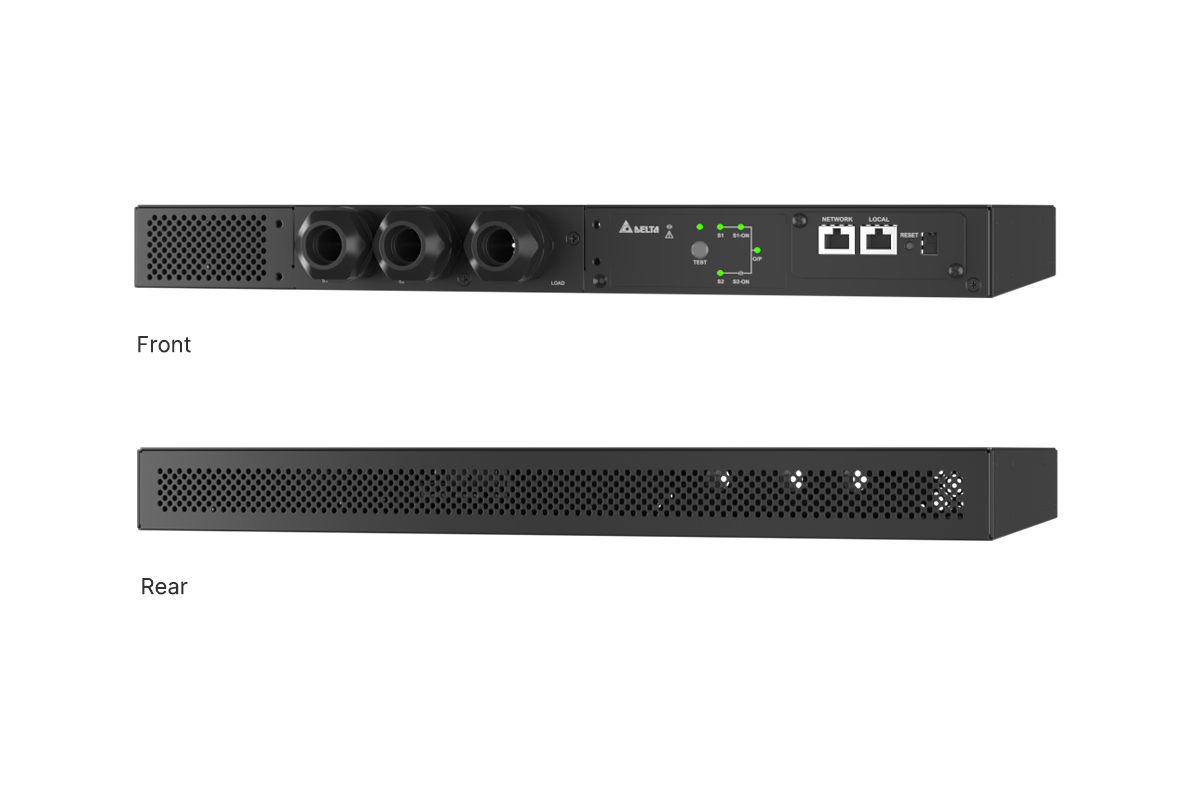

STS30002SR : IEC309 / Hardwired
Output
STS16002SR : C13 x 4 + C19 x 1 pcs
STS30002SR : IEC309 / Hardwired
Communication : SNMP
Operating temperature : 0~40℃
Typical Transfer Time : 6~10ms
Storage temperature : -15~50℃
Humidity : 0%~95% RH (non-condensing)
Audible Noise (at one meter) : <40 dB
Physical Dimensions (H x W x D)
STS16002SR : 43 x 440 x 385 mm
STS30002SR : 43 x 440 x 385 mm / 43 x 440 x 390 mm
Weight
STS16002SR : 4.85kg
STS30002SR : 7.6kg / 6.2kg
* Under the condition of 35 ℃; if the environment temperature is 36-40 ℃, the product should be de-rated to 25.6A.

All specifications are subject to change without prior notice.
