M250HV

Delta's M250HV three-phase solar inverter is designed for large scale utility application. It is equipped with 12 sets of MPP trackers with 250kW output power, 820-1350V ultra-wide MPP voltage range, and >99% peak efficiency. Besides, M250HV integrates string fuses, surge protection devices, and DC switches in a compact unit. With its electrolytic capacitors free design and IP66 rating, it can ensure service life and high reliability in long-term operation, thus maximize operator's profit.

Product Introduction

Features & Benefits

  • High voltage up to 1500 Vdc & 800 Vac
  • Excellent efficiency performance, 99.0 % peak & 98.8 % Euro Efficiency
  • IP66 protection level
  • Independent AC wiring box, fast & safe installation design
  • SUB_1G communication and APP quick commission
  • Fuseless design
  • 12 MPP Trackers, ultra-wide MPPT voltage range
  • Night time reactive power
  • Built in DC switches, type II SPD and string monitoring function
  • Smart cooling system

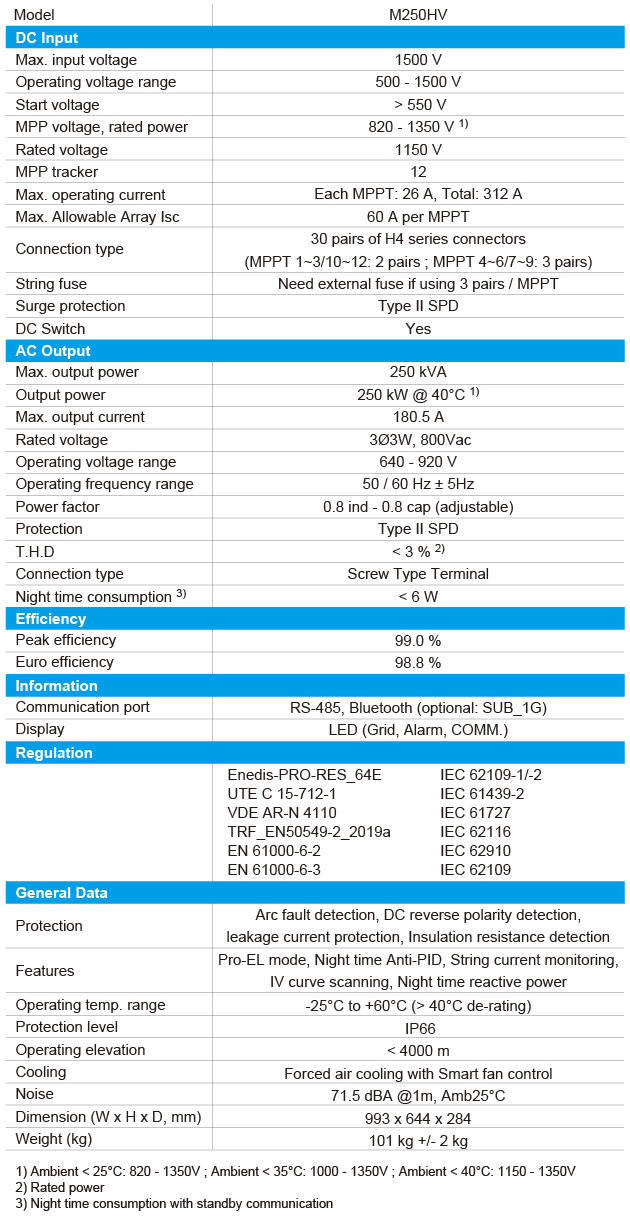

Specifications
Download

Manual/17.4MB

Catalog/989KB
