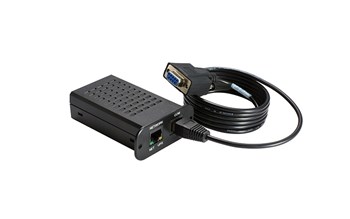

Mini SNMP IPv6 Card

The Mini SNMP Card is a device that provides an interface between a UPS and a network. It communicates with the UPS, acquires information and remotely manages the UPS via a network system. The Mini SNMP supports public protocols including SNMP, HTTP and Modbus TCP. You can effortlessly configure this Mini SNMP using a network system and easily obtain your UPS’s status and manage your UPS via the Mini SNMP.

The interface includes a Network port, a COM port and LED indicators.

Delta Mini SNMP IPv6 Card - interface


Downloads Request a Quote

Product Introduction

Features & Benefits

Available Protocols

  • SNMPv1, v2c and v3 supported; accepts NMS monitoring as well as actively sends trap packets to target hosts; support IPv4 and IPv6 TCP/IP protocol
  • Modbus TCP/IP
  • MQTT
  • Web monitor and set up through network browser with built-in web server
  • Remote authentication: LDAP, 802.1x
  • Others telnet, SSH, FTP, SFTP, BOOTP, DHCP, SMTP, SNTP, WOL, Syslog
  • MIB supports RFC1628 and Delta proprietary UPSv4 and UPSv5 MIB


Management

  • Scheduling: perform planned UPS power on & off and battery testing
  • Regular power on & off: can set up UPS power on and off time
  • Regular battery discharging testing
  • Smart shutdown: can send power off signal to connected host actively if the host computer has the ShutdownAgent installed
  • Optional environment probe can integrate ambient temperature and humidity with 4 additional digital inputs for total cabinet monitoring


Event Log Recording and Export

  • Event sequence and UPS parameter data recording

Specifications
  1. Deployment
  2. Network Connection: 10/100 M RJ45 Connector
  3. Input Power: 12 Vdc
  4. Power Consumption: < 2 W
  5. Operating Temperature: 0 to 60°C
  6. Operation Humidity: 0-90%
  8. Physical
  9. Dimensions: 87 x 70 x 30 mm
  10. Net Weight: 75 g
  12. Conformance
  13. Standard: EN 55032:2015+A11:2020, EN 55035:2017+A11:2020
  14. Product Certifications: FCC Class B, CB, UL
  15. Sustainability: RoHS, REACH
