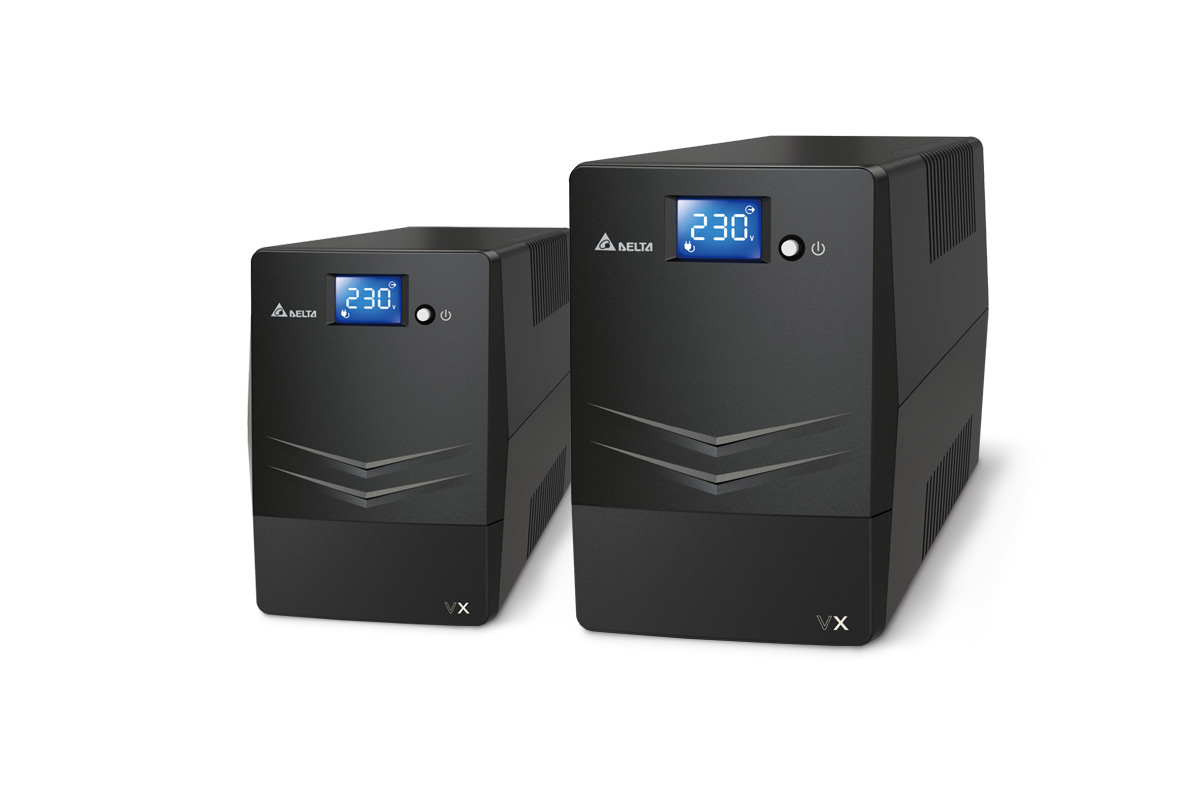

VX 600/1000/1500 VA

Features & Benefits

Reliability

• The integrated AVR (Automatic Voltage Regulation) stabilizes the output voltage for better power quality

• Excellent microprocessor control enables accurate detection of power frequency for higher reliability

• Wide input voltage range allows the UPS to work in harsh electrical environments and reduces battery discharging time

• Batteries are automatically recharged even when the UPS is in off mode and the UPS can start without mains (Cold-Start)

• UPS is able to restart automatically while utility power is recovering

• Surge protection defends your critical load against damage

Convenience

• IEC 60320 or universal output socket options offer greater installation flexibility and enable easy integration with computers and IT peripherals
• Compact size saves more space for critical equipment

Manageability

• Standard USB communication port enhances monitoring and manageability

• Touch screen LCD for a clear display of UPS information (Only applicable for LCD models)

• Advanced UPS management software provides remote shutdown and control

Applications

Specifications

1. Model
2. VX-600VA, VX-1000VA, VX-1500VA
3. Topology: Line interactive

4. ---

5. Power Rating
6. VX-600VA: 600VA / 360W
   VX-1000VA: 1000VA / 600W
   VX-1500VA: 1500VA / 900W

7. ---

8. Input
9. Nominal Voltage: 230 Vac, 1P2W+PE
10. Voltage Range: 170-280 Vac (100% load)
11. Frequency Range: 45-65 Hz
12. Plug Type⁽¹⁾: IEC

13. ---

14. Output
15. Nominal Voltage: 230 Vac, 1P2W+PE
16. Voltage Regulation: ±10%
17. Frequency Range: 50/60 ± 1 Hz
18. Power Factor: 0.6

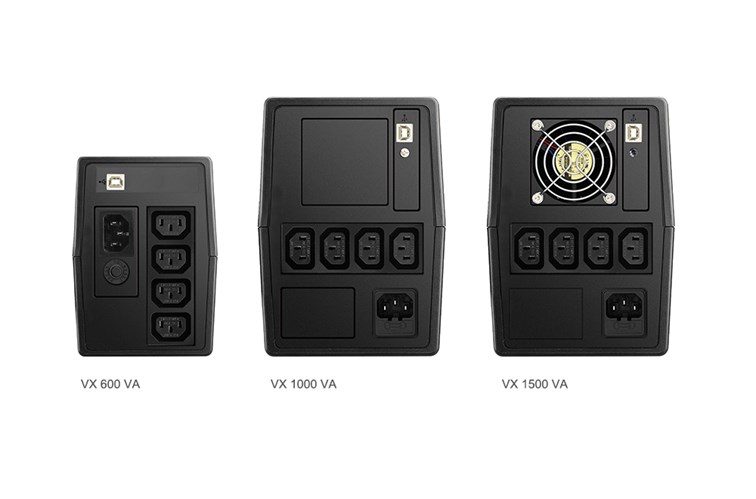

19. Connection⁽²⁾
    IEC Model: IEC C13 x4
    Universal Model
    ⦁ VX-600VA: IEC C13 x2 + Universal x2
    ⦁ VX-1000/1500VA: Universal x3
20. Overload Capability: 110 ± 10%: < 5 min

21. ---

22. Efficiency
23. Online Mode: Up to 95%

24. ---

25. Battery
26. Battery Type: VRLA
27. Nominal Voltage
    ⦁ VX-600VA: 12 Vdc
    ⦁ VX-1000/1500VA: 24 Vdc
28. Quantity
    ⦁ VX-600VA: 1 pcs
    ⦁ VX-1000/1500VA: 2 pcs
29. Runtime⁽³⁾
    ⦁ VX-600VA: 5.7 min
    ⦁ VX-1000VA: 5 min
    ⦁ VX-1500VA: 5.5 min
30. Recharge Time: 6-8 hours to 90%

31. ---

32. Communication Interface
33. Display
    ⦁ VX-600VA: LED indicator
    ⦁ VX-1000/1500VA: LCD touch panel
34. Port: USB
35. Audible Alarm: Battery mode, Low battery, Overload, Fault

36. ---

37. Physical
38. Dimensions (W x D x H)
    ⦁ VX-600VA: 101 x 279 x 142 mm
    ⦁ VX-1000/1500VA: 130 x 320 x 182 mm
39. Net Weight
    ⦁ VX-600VA: 4.2 kg
    ⦁ VX-1000VA: 8.2 kg
    ⦁ VX-1500VA: 9.7 kg
40. Packing Dimensions (W x D x H)
    ⦁ VX-600VA: 140 x 344 x 220 mm
    ⦁ VX-1000/1500VA: 192 x 390 x 275 mm
41. Packing Weight
    ⦁ VX-600VA: 4.5 kg
    ⦁ VX-1000VA: 8.9 kg
    ⦁ VX-1500VA: 10.4 kg

42. ---

43. Environment
44. Operating Temperature: 0 to 40ºC
45. Humidity: 0-95% (non-condensing)
46. Audible Noise
    ⦁ VX-600/1000VA: < 40 dBA
    ⦁ VX-1500VA: < 45 dBA
47. Altitude: 0-1000 m
48. Storage Temperature: -20 to 50°C

49. ---

50. Conformance
51. Safety: CE, UKCA, EAC, TISI, RCM, BIS, KC
52. Sustainability: RoHS, REACH

53. ---

54. (1) Models with Australian, Korean, Indian, and Schuko input plugs are also available
    (2) Options include Schuko, AU and IN output connections
    (3) Runtime with 50% load
55. All specifications are subject to change without prior notice.
