Wi-Fi 7 Access Points

High Performance, AI-Powered Wi-Fi 7 Access Point

The AIWAXIS AP-743 is a high-performance Wi-Fi 7 (802.11be) access point built for demanding environments such as smart warehouses, automated factories, and logistics hubs. Designed to support the explosive growth of mobile robots, AR/MR devices, and mission-critical enterprise applications, the AP-743 delivers ultra-low latency, extreme throughput, and intelligent control when paired with the AIWAXIS platform.


Datasheet Inquiry

Product Introduction

Features & Benefits
  • Dedicated scanning radio for smarter roaming
  • Tri-band aggregate throughput up to 20 Gbps
  • Supports 4 x 4, 2.4 GHz, 5 GHz, and 6 GHz bands
  • 320 MHz enables peak throughput
  • Multi-Link Operation, 4K QAM and preamble puncturing for higher capacity, lower latency and reliable connectivity
  • Dual-port 10 Gbps multi-gigabit Ethernet ports
  • Supports PoE, compliant with IEEE 802.3bt/at
  • Supports WPA2/WPA3 and 802.1X



Applications
  • Smart Factory Automation
  • Automated Warehouse
  • AR/MR/Computer Vision

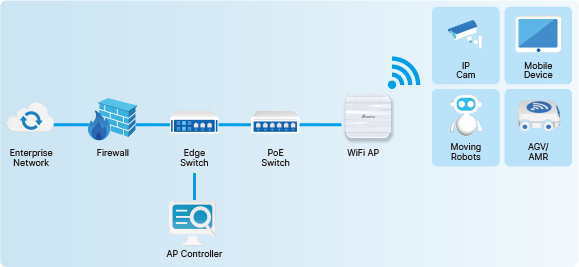

Delta AIWAXIS Network Management Scenario:

Delta AIWAXIS Network Management Scenario



Specifications
  1. Model
  2. AIWAXIS AP-743
  4. Transmit Power:
    ⦁ 2.4 GHz: +17 dBm
    ⦁ 5 GHz: +18 dBm
    ⦁ 6 GHz: +16 dBm
  5. Antenna Gain (Built-in):
    ⦁ 2.4 GHz: ≤ 4 dBi
    ⦁ 5 GHz: ≤ 5 dBi
    ⦁ 6 GHz: ≤ 5 dBi
  7. Antenna
  8. Stream: 4 x 4
  9. Location: Internal
  10. Frequency: 2.4 GHz/5 GHz/6 GHz Tri-band
  11. Directional: Omni-directional
  12. Isolation (dB)
    ⦁ 2.4 GHz: < -20 dB
    ⦁ 5 GHz: < -32 dB
    ⦁ 6 GHz: < -32 dB
  13. VSWR: < 2
  14. Efficiency: > 60%
  16. Input
  17. Power Input:
    PoE: IEEE 802.3 BT/AT/AF
    DC Jack: DC12V
  18. Power Consumption: 44 Watts
  20. Communication Interface
  21. Management: AIWAXIS Management Platform, AP mode
  22. Ethernet Ports: 2 x 10/100/1000/2.5G/5G/10G BASE-T
  23. Wi-Fi Standard: IEEE802.11 a/b/g/n/ac/ax/be
  24. Data Rates:
    ⦁ 2.4 GHz: up to 1376 Mbps (11be, 4096QAM, HE40)
    ⦁ 5 GHz: up to 5764 Mbps (11be, 4096QAM, HE160)
    ⦁ 6 GHz: up to 11528 Mbps (11be, 4096QAM, HE320)
  25. Channel Width: 20/40/80/160/320 MHz
  26. SSID Per Radio: 16
  27. Max Clients Per Radio: 256
  28. Radio:
    Multiple SSID; Controller-based Channel Selection; Transmit Power Adjustment; Rogue AP Detection
  29. AP Security:
    Personal: Open; WPA; WPA2; WPA3; WPA/WPA2; WPA2/WPA3.
    Enterprise: Open; WPA2; WPA3; WPA2/WPA3.
  31. Physical
  32. Dimensions (L x W x D): 230 x 230 x 40.9 mm
  33. Net Weight: < 1400 g
  34. Enclosure: White, PC
  36. Environment
  37. Operating Temperature: 0 to 45°C
  38. Storage Temperature: -20 to 60°C
  40. Package Contents
  41. AP-743 x1
    Wall/T-bar mount x1
    Screw kit x1
  43. All specifications are subject to change without prior notice.
